Product highlights:

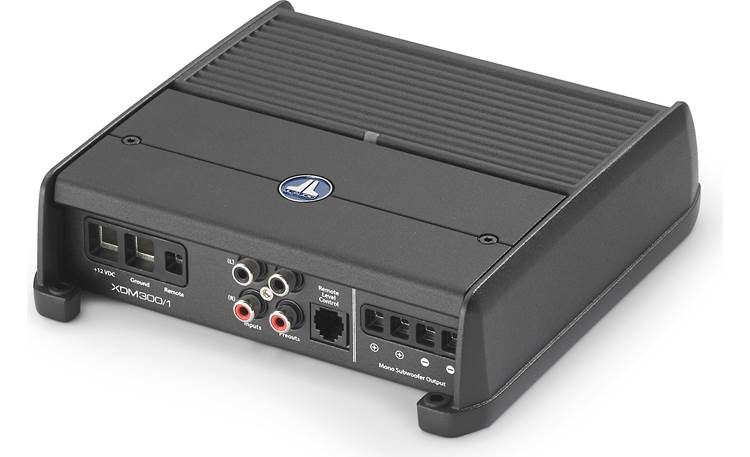

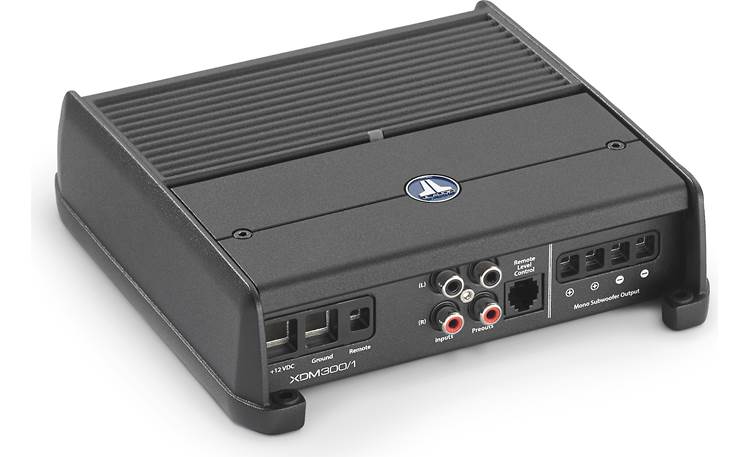

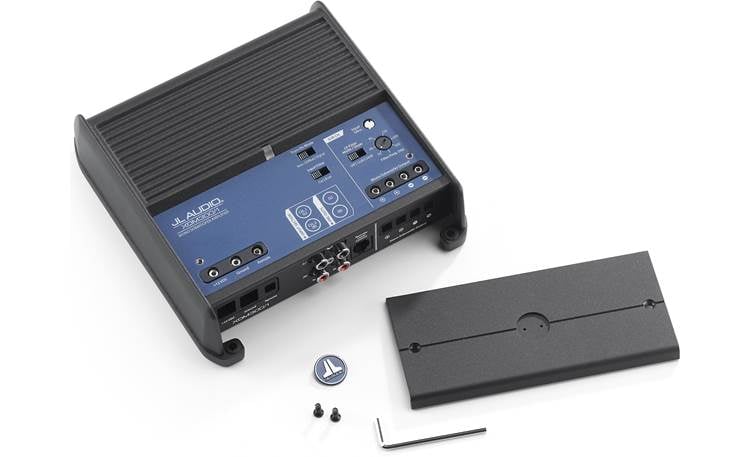

- mono subwoofer amplifer
- 200 watts RMS x 1 at 4 ohms (300 watts RMS x 1 at 2 ohms)
- variable low-pass filter (50-500 Hz, 12 or 24 dB/octave)
- optional wired remote level controller
- Class D amplifier design with NextD™ switching amp technology
- differential-balanced inputs eliminate noise coming from your vehicle's electrical system
- Advanced Rollback Protection System prevents thermal shut-down
Connection Features
- preamp and speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
- high-level inputs — up to 8 volts RMS (about 16 watts)
- DC offset or signal sensing auto turn-on eliminates need for remote lead
- preamp outputs
- 8-gauge power and ground leads and a 30-amp fuse recommended — wiring and hardware not included with amplifier
- no onboard fuses — when installing multiple amps in a system, an additional 30-amp in-line fuse between the distribution block and the amplifier is recommended
- 6-7/8"W x 2"H x 7-1/8"D
- warranty: 2 years
