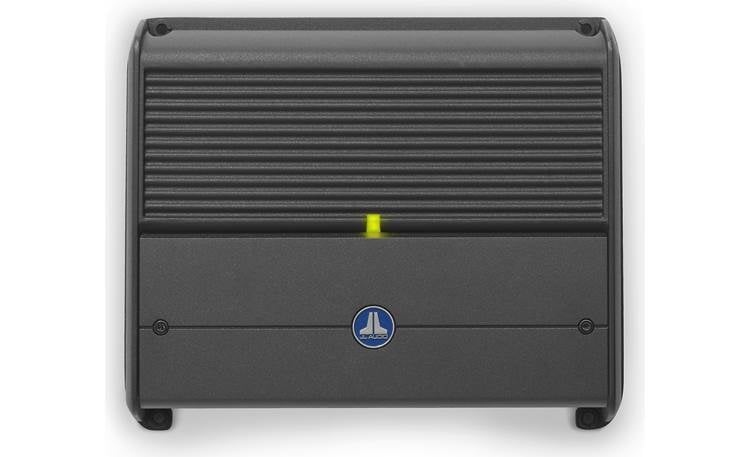

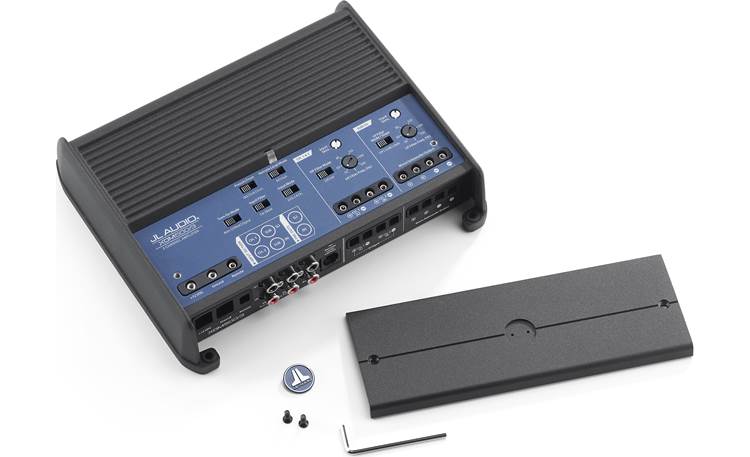

JL Audio XD500/3v2 3-channel car amplifier — 75 watts RMS x 2 at 4 ohms + 300 watts RMS x 1 at 2 ohms

Regular price
$579.00
Sale price
$579.00
Regular price
Sold out
Unit price
per

Product highlights:

  • 3-channel car amplifer
  • 75 watts RMS x 2 + 180 watts RMS x 1 at 4 ohms
  • 100 watts RMS x 2 + 300 watts RMS x 1 at 2 ohms
  • 200 watts RMS x 1 bridged at 4 ohms + 300 watts RMS x 1 at 2 ohms
  • front channels: variable high-pass filter (50-500 Hz, 12 dB/octave)
  • sub channel: variable low-pass filter (50-500 Hz, 12 or 24 dB/octave)
  • optional wired remote controls sub or system level
  • Class D amplifier design with NextD™ switching amp technology
  • differential-balanced inputs eliminate noise coming from your vehicle's electrical system
  • Advanced Rollback Protection System prevents thermal shut-down

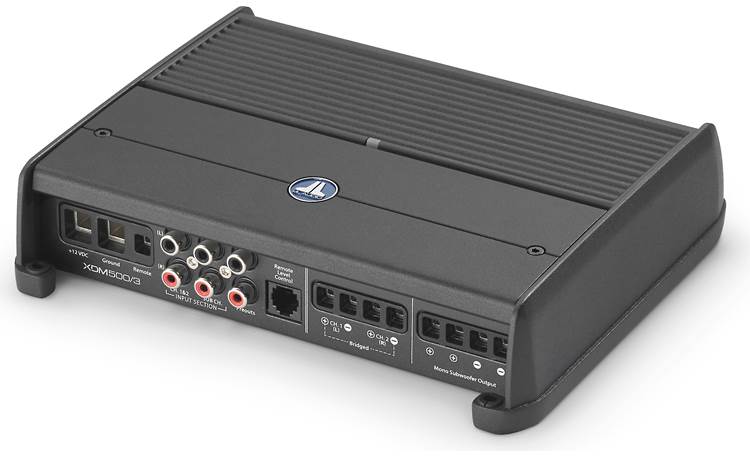

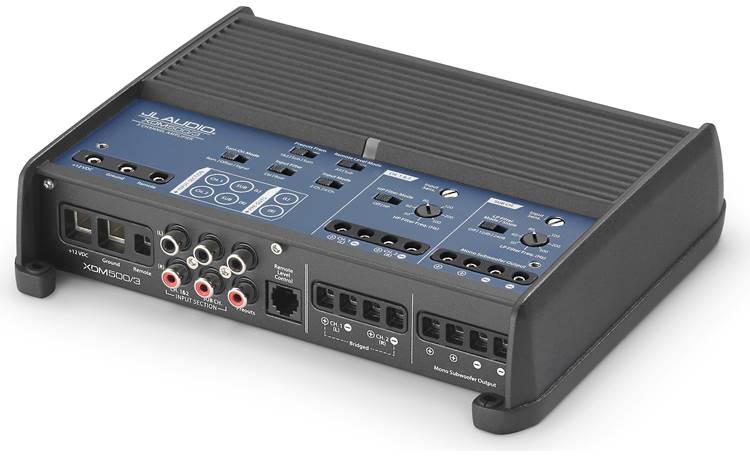

Connection Features
  • preamp inputs and outputs
  • speaker-level inputs (speaker wire to RCA adapter required for speaker-level input)
  • high-level inputs — up to 8 volts RMS (about 16 watts)
  • DC offset or signal sensing auto turn-on eliminates need for remote lead
  • 4-gauge power and ground leads and a 50-amp fuse recommended — wiring and hardware not included with amplifier
  • no onboard fuses — when installing multiple amps in a system, an additional 50-amp in-line fuse between the distribution block and the amplifier is recommended
  • 8-9/16"W x 2"H x 7-1/8"D
  • warranty: 2 years
